ODAKE CT761 Series Thermal Conductive Silicone is a high-performance, one-component, room-temperature curing silicone adhesive formulated with chloroprene rubber as the primary base and reinforced with thermally conductive fillers like magnesium oxide (MgO) and zinc oxide (ZnO).
Engineered to meet demanding thermal management requirements, this silicone delivers excellent adhesion, superior thermal conductivity, and long-lasting durability for a wide variety of electronic and electrical devices.
Fully compliant with ASTM standards, as well as REACH and RoHS regulations, the ODAKE CT761 Series is safe, non-toxic, and environmentally friendly, making it an ideal choice for reliable thermal interface solutions.
Excellent thermal conductivity
high and low-temperature resistance
Superior electrical insulation and flexibility
Waterproof sealing properties
Non-corrosive to metals and most plastics
100ML/piece, 100 pieces/box;
300ML/piece, 30 pieces/box;
Please store in a cool and dry place. The unopened shelf life is 9 months.
The ODAKE CT761 Series Thermal Conductive Silicone is widely used in thermal management applications, particularly where high-performance heat dissipation is essential. Key uses include:

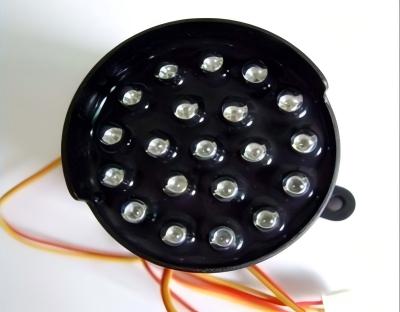

High-power LED lighting
Electronic rectifiers
Thermistors
Switching power supplies
Automotive HID (High-Intensity Discharge) light modules
Automotive ignition system modules
Transformers
Heat sinks and thermal interface materials
| Product model | CT761-1 | CT761-5 | CT761-6 |
| Color | White | Bright White | White |
| Appearance | Semi-fluid | Not flowing | |
| Initial solidification min | 30～60 | ||
| Full solidification h | 24 | ||
| Temperature range ℃ | -50～250 | ||
| Hardness (Shore A) | 40～45 | 55-62 | |
| Tensile strength (Mpa) ≥ | 1.5 | ||
| Volume resistivity (Ω .cm) ≥ | 2×1015 | ||
| Breakdown voltage (MV/m) ≥ | 13 | ||
| Dielectric constant (1MHZ) | 2.8 | ||
| Flame retardant standard | UL94V-0 | ||
| Compatibility with PC material | Incompatible | Compatible | Incompatible |
| Thermal conductivity (Thermal conductivityw/m.k) | 1 | 1.6 | 3 |
Disclaimer
The data provided in this document are representative values derived from actual measurements and routine testing. Hexu Xinwang assumes no responsibility for data obtained through unauthorized personnel or testing methods not approved by the company. Due to variations in application conditions, the above information should be adapted to the user’s specific circumstances. Hexu Xinwang accepts no liability for individual cases, including, but not limited to, any loss of profits.
