ODAKE CT766 Thermal Gel Series is a specially formulated, silicone-based thermally conductive gel that utilizes advanced composite fillers to deliver superior thermal conductivity and electrical insulation.
This high-performance thermal gel offers low oil permeability, outstanding resistance to high and low temperatures, and excellent durability against moisture, ozone, and weathering. These properties make it ideal for maintaining reliable thermal management in demanding environments.
Commonly used as a thermal interface material (TIM), the ODAKE CT766 Thermal Gel Series efficiently transfers heat between power components—such as power transistors, thyristor rectifiers, and heating stacks—and heat dissipation devices like heat sinks, thermally conductive plates, and housings.
Excellent thermal conductivity
Electrical insulation
Non-toxic and environmentally friendly
High and low temperature resistance.
Water, ozone, weather and corrosion resistance
300ML/piece
Please store in a cool and dry place, shelf life is 9 months.
ODAKE CT766 Thermally Conductive Gel Series is a versatile thermal management solution that can be applied between heat generating components and heat dissipation solutions in various devices.
Primary Applications Include:
Smartphone CPUs and Memory Chips
Power Modules
Integrated Chips and Electronic Controllers
Power Supply Modules

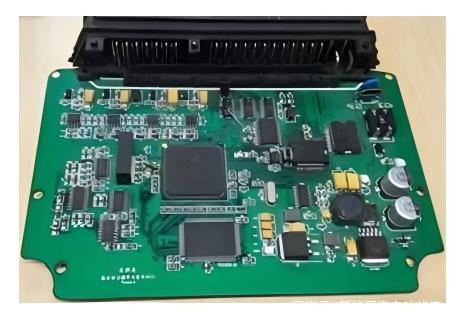

Automotive Electronics and Controllers
Telecommunication Equipment
Computers and Related Accessories
| Product Model | CT766A | CT766B |
| Color | Pink | |
| Appearance | Paste | |
| Density (g/cm3) | 2.65~2.85 | 2.72-2.92 |
| Curing time min 60℃ | 240 | |
| Curing time min 100℃ | 50-70 | |
| Temperature range ℃ | -60～200 | |
| Hardness (Shore A) | 67～77 | 68～78 |
| Tensile strength (Mpa) ≥ | 0.25 | |
| Volume resistivity (Ω.cm) ≥ | 1.0×1013 | |
| Breakdown voltage (MV/m) ≥ | 12 | |
| Dielectric strength (kV/mm) | 13 | |
| Flame retardant standard | UL94V-0 | |
| Compatibility with PC material | Incompatible | |
| Thermal conductivity (Thermal conductivity w/m.k) | 2 | 3 |
Disclaimer
The data provided in this document are representative values derived from actual measurements and routine testing. Hexu Xinwang assumes no responsibility for data obtained through unauthorized personnel or testing methods not approved by the company. Due to variations in application conditions, the above information should be adapted to the user’s specific circumstances. Hexu Xinwang accepts no liability for individual cases, including, but not limited to, any loss of profits.
