ODAKE Transparent 2-Part Epoxy Structural Adhesive Series is a high-performance epoxy adhesive system formulated with Part A as the adhesive resin and Part B as the curing catalyst. When thoroughly mixed, Part B triggers rapid cross-linking of the resin, resulting in a strong, durable bond and an effective encapsulant with excellent clarity.
This transparent epoxy adhesive is specially designed for precision bonding and encapsulation across a range of industries, including industrial manufacturing, automotive, electronics, and lighting applications where both strength and visual clarity are essential.
The series fully complies with ASTM structural adhesive standards and adheres to strict EU REACH and RoHS chemical regulations, ensuring it is safe, non-toxic, and environmentally friendly.
Safe and non-toxic
Exceptional Bond Strength
High Transparency
Waterproof & Weather-Resistant
Durable & Insulating
Wide Service-Temperature Range
50ML/piece
2 kg/group
Glue A and glue B should be stored separately in a dry, low-temperature, light-proof environment. The shelf life is 6 months.
The ODAKE Transparent 2-Part Epoxy Structural Adhesive Series is designed for high-performance bonding and encapsulation across a wide range of materials, including metal, plastic, ceramic, and rubber. Its high clarity, strong adhesion, and excellent durability make it ideal for both structural and aesthetic applications.
Typical Applications Include:
LED Lighting

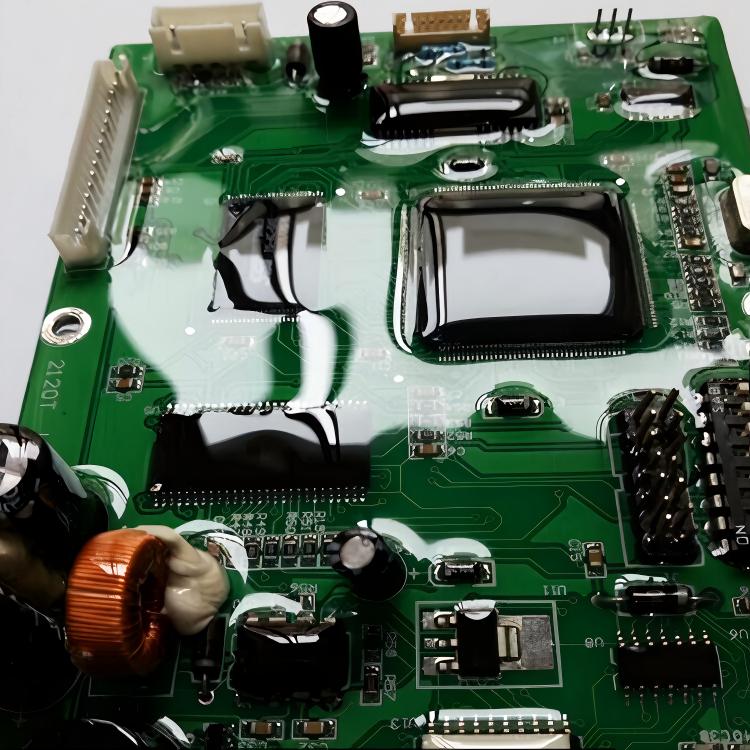

Electronic Components
Crafts and Decorative Items
Small Home Appliances
Kitchen Equipment
Audio-Visual Equipment
| Product Model | CT6810 | CT6820 | CT6822 | CT6828 |
| color | transparent | |||
| Appearance | Semi-liquid | |||
| Initial setting time after AB glue mixing (minutes) | 3-5 | 5 | 30-60 | 5 |
| Full solidification time (hours) | 24 | |||
| Temperature range (℃) | -55～150 | -60～120 | -30～120 | -60～120 |
| Hardness (Shore A) | 60～65 | 80～82 | 60～65 | 80～82 |
| Volume mixing ratio | 1 ：1 | |||
| Weight Mixing Ratio | 1:0.9 | |||
| Light transmittance | 0.9 | |||
| Shear strength (MPa) ≥ | 49 | 22 | 48 | |
| Tensile strength (MPa) ≥ | 62 | 24 | 57 | |
| Certificate | ROHS Certification | |||
Disclaimer
The data provided in this document are representative values derived from actual measurements and routine testing. Hexu Xinwang assumes no responsibility for data obtained through unauthorized personnel or testing methods not approved by the company. Due to variations in application conditions, the above information should be adapted to the user’s specific circumstances. Hexu Xinwang accepts no liability for individual cases, including, but not limited to, any loss of profits.
