The ODAKE UV860 Series is an advanced dual-cure conformal coating adhesive engineered to provide superior protection for electronic components, printed circuit boards (PCBs), and industrial assemblies. Its unique formulation cures rapidly under UV light, with secondary moisture curing ensuring complete coverage even in shaded or hard-to-reach areas.
With a balanced viscosity, the UV860 Series supports versatile application methods—including spraying, brushing, and selective dispensing—making it well-suited for both manual operations and automated production lines.
Fast curing speed
Good surface drying
Moisture resistance
Salt spray resistance
UV light and humidified air dual curing
Support spraying, brushing and selective dispensing
50ML/tube (CT8608)
250ML/can.1KG/can, 5KG/can (CT8601, CT8602)
Store in a dry, tightly closed place at 20 to 25°C. 12 months in unopened container
Provides reliable insulation and sealing for integrated circuits, electronic components, and solder joints。
It is widely used in:
3C electronic products (computers, communications, and consumer electronics)
New energy vehicles (NEVs)
Semiconductor packaging and chip protection

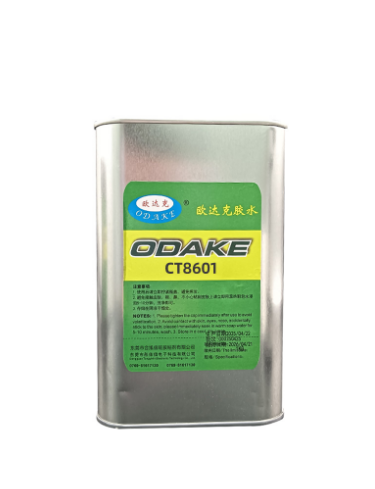

| Product Model | CT8601 | CT8602 | CT8608 |
| Appearance | Colorless to light yellow transparent liquid (fluorescent) | Colorless transparent liquid (fluorescent) | Slightly yellow paste, transparent after curing |
| Initial solidification time | 9-11 seconds | 6-9 seconds | |
| Curing method | UV light and humidified air dual curing | ||
| Viscosity mPa*s | 170 | 83-89 | |
| Operating temperature | -40℃~120℃ | ||
| Applicable materials | Mainly used in the field of new energy vehicles to protect various electronic components and welding points of integrated circuits | Mainly used in 3C electronic products to protect various electronic components and welding points of integrated circuits | Suitable for bonding various materials and structures Suitable for semiconductor chip protection |
| Product Performance | haveModerate viscosity, spraying, brushing Suitable for a variety of processes, fast curing speed, good surface drying,Moisture and salt spray resistant, environmentally friendly and safe adhesive, easy to use and simple to operate. It is specially developed for rapid construction and rapid curing production processHigh-level protective coating materialsThe product has good compatibility with general industrial solders, no-clean solder pastes, electroplated metals, components and substrates. | ||
| Packing Specifications | 1KG/can, 5KG/can | 30ML/50ML | |
| Certificate | ROHS certification,REACH certification | ||
Disclaimer
The data provided in this document are representative values derived from actual measurements and routine testing. Hexu Xinwang assumes no responsibility for data obtained through unauthorized personnel or testing methods not approved by the company. Due to variations in application conditions, the above information should be adapted to the user’s specific circumstances. Hexu Xinwang accepts no liability for individual cases, including, but not limited to, any loss of profits.
